Titanium CNC Machining Services

Our CNC shop specializes in high-precision titanium machining for aerospace, medical, and automotive industries. We leverage advanced Makino, Mazak, and Citizen Swiss machines for reliable, complex parts in prototype and small-batch production.

Material/Metal CNC Machining/ Titanium CNC Machining Services

Titanium CNC machining

Titanium is renowned for its exceptional strength-to-weight ratio, high corrosion resistance, and biocompatibility. These properties make it the material of choice for critical applications in aerospace components, medical implants, and high-performance automotive parts. However, machining titanium requires specialized expertise and advanced equipment to achieve precision and maintain material integrity.

Our machining service is equipped to handle these challenges. We utilize a fleet of high-performance CNC machines, including Makino, Mazak, and precision Citizen & Tsugami Swiss-types, specifically configured for machining titanium alloys. This allows us to produce complex, high-tolerance custom titanium machined parts with superior surface finishes, efficiently and reliably.

Our Capabilities and Service for Titanium Custom CNC Machining

Titanium’s excellent strength-to-weight ratio and high corrosion resistance make it ideal for aerospace, medical, and automotive industries. However, its low thermal conductivity and tendency to work-harden demand specialized machining expertise. Our capabilities are purpose-built to address these exact challenges, ensuring part integrity and superior surface finishes.

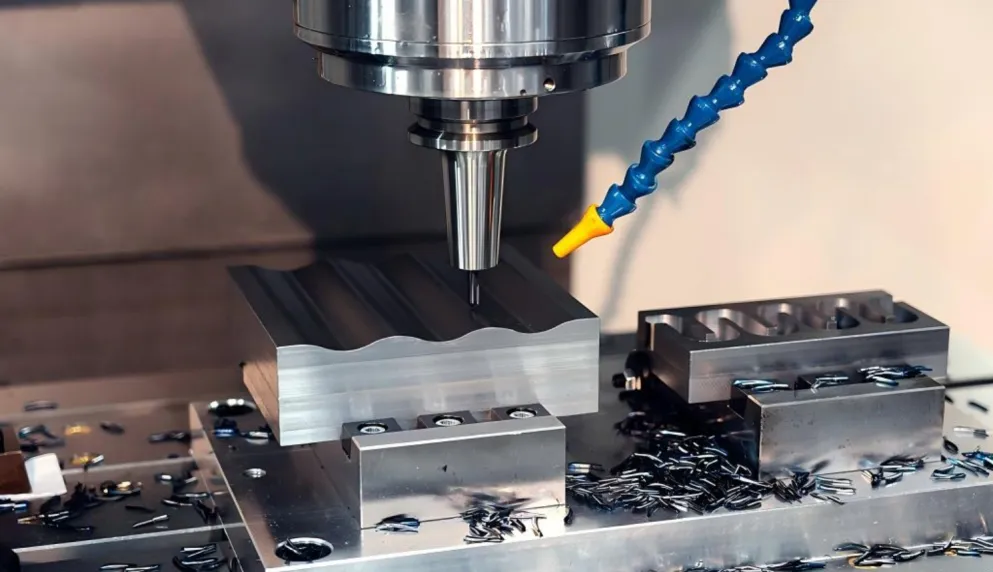

CNC Milling

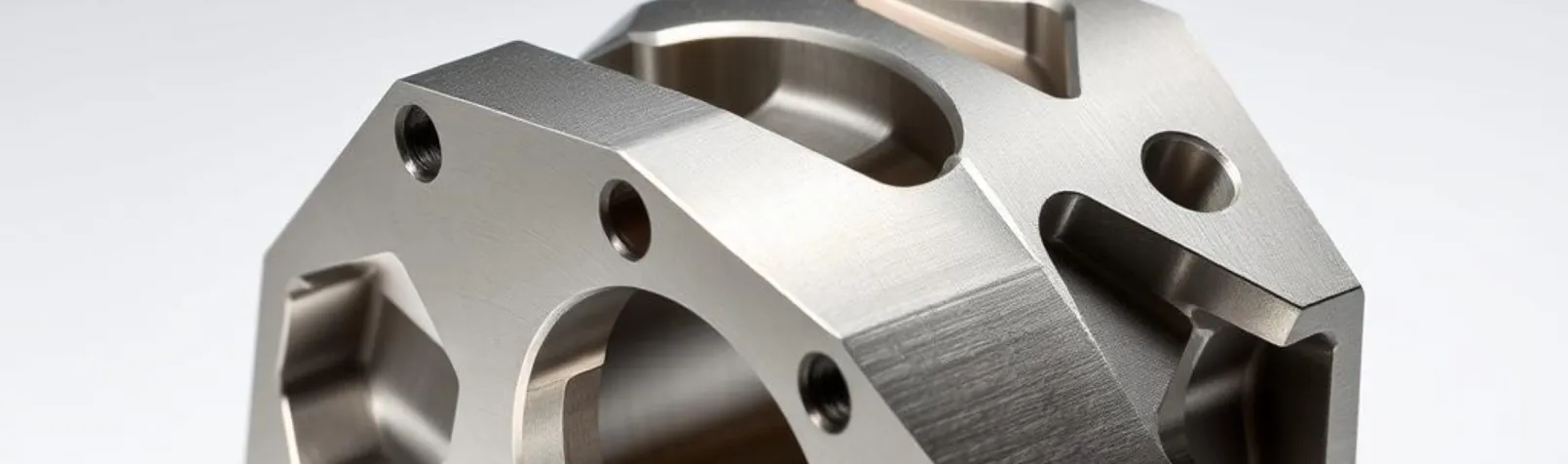

We specialize in high-performance titanium milling for prototypes and production runs. Our advanced 5-axis CNC machining centers create complex geometries with tight tolerances, while our 3-axis capabilities deliver cost-effective solutions for simpler parts. Leveraging 24/7 automation and rapid tooling, we guarantee efficient milling for any batch size, ensuring superior quality and value for your titanium components.

5 Axis CNC Machining, A Purpose-Built Portfolio for Titanium

The Makino machines in our facility—the DA300, D200Z, and A51NX—form a complementary suite specifically designed to overcome the challenges of machining difficult aerospace materials like titanium. Their advantages are not just individual but synergistic, offering solutions for high-speed roughing, deep-hole drilling, and high-precision finishing.

The core challenges with titanium are its high strength, low thermal conductivity, and tendency to work-harden. Our Makino equipment addresses these directly through exceptional rigidity, advanced thermal stability, and powerful spindle technology.

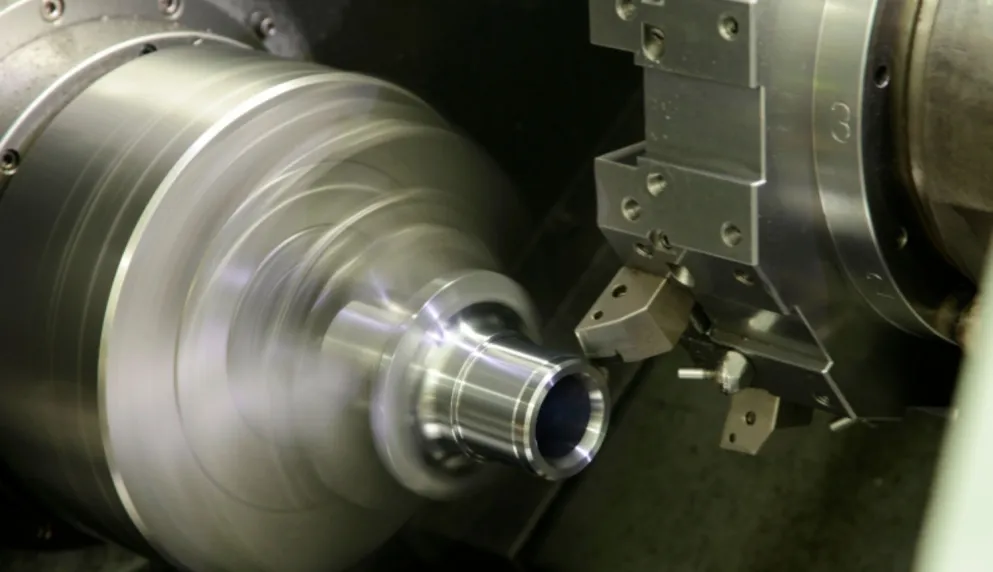

CNC Turning

Our turning cell is equipped with advanced Mazak multi-tasking turning centers, including a QTE-100MYL and a model with a 500U U-axis. For machining challenging materials like titanium, their extreme rigidity and unique U-axis capability allow us to produce complex contours and features in a single setup. This ‘Done-in-One’ approach minimizes handling, reduces total production time, and ensures the highest level of accuracy for your turned titanium components, contributing to overall cost-effectiveness.

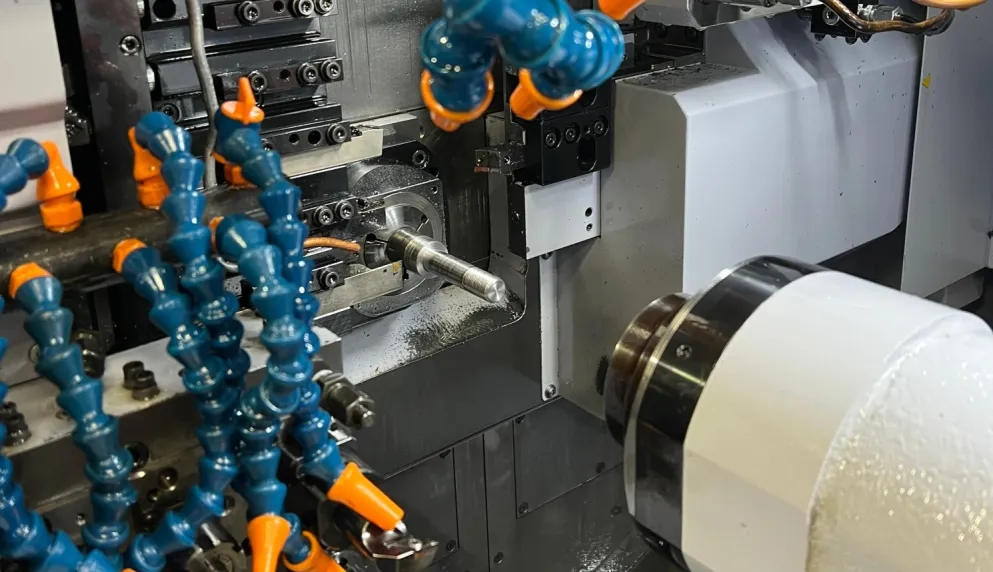

Swiss CNC Machining

For small, high-precision titanium components, our Citizen A20 and Tsugami BO205/S206 Swiss-type lathes excel. Their rigid guide bushing system provides unmatched stability for machining long, slender bar stock. The multi-tasking capabilities allow us to produce intricate parts complete in one operation, ensuring highest accuracy and cost-effectiveness for prototypes and short runs.

Small Batch CNC Machining

Our advantage in small-batch titanium machining comes from our specialized equipment portfolio. We use high-end Makino and Mazak machining centers for complex 3D contours and heavy-duty milling, ensuring stability and precision in titanium. For small, intricate titanium components, our Citizen and Tsugami Swiss-type lathes provide superior accuracy and finish in a single setup, reducing lead times and cost for prototypes and short runs.

Your Partner for Quality and Precision

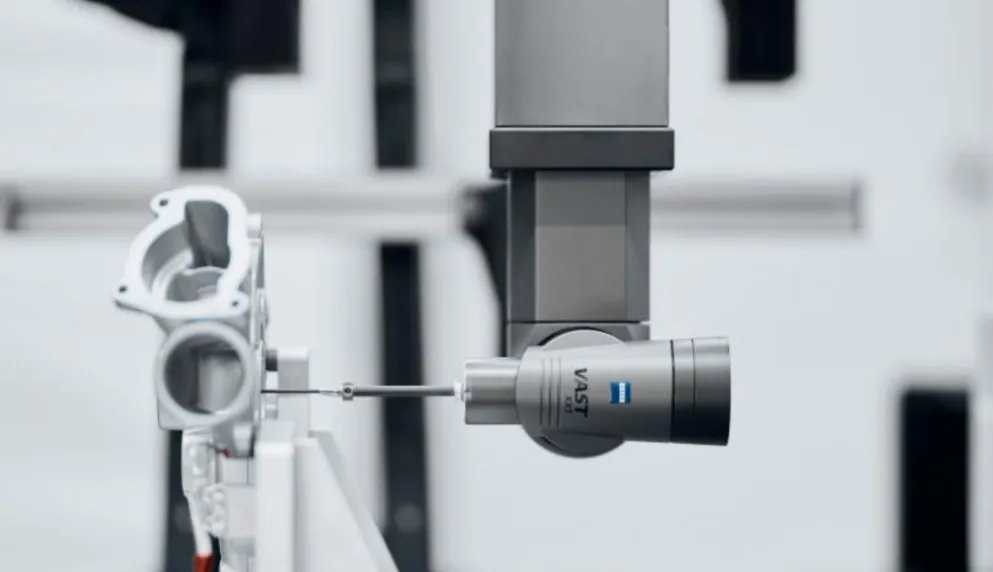

As an ISO 9001-certified machine shop, we guarantee unbeatable accuracy and consistent quality. Our experienced professionals provide personalized support from design to delivery, ensuring fast turnaround and project success.

Ready to Start Your Titanium Project?

Choosing the Right Grade of Titanium for CNC Machining

Selecting the optimal titanium grade is critical for the success of your project. The choice depends on your application’s specific requirements for strength, weight, corrosion resistance, biocompatibility, and machinability. The guide below details the most common grades to help you make an informed decision. At Yokan Manufacturing, our experts are ready to help you select the perfect titanium alloy for your CNC machining project.

01 Titanium Grade 2 (3.7035) - The Industry Standard

As the most widely available commercially pure titanium, Grade 2 offers an ideal balance of strength, ductility, and corrosion resistance. It is highly weldable and formable, making it a versatile choice for a wide range of applications.

● Typical Uses: Aircraft components, marine fixtures, chemical processing equipment, medical implant cases.

● Why Choose It: When you need excellent all-around performance and corrosion resistance without the highest strength requirement.

02 Titanium Grade 5 (Ti-6Al-4V, 3.7164) - The High-Strength Workhorse

Grade 5 is the most commonly used titanium alloy globally. Its exceptional strength-to-weight ratio and good creep resistance up to 300°C make it suitable for the most demanding applications.

● Typical Uses: Aircraft structural parts, turbine engine components, high-performance automotive parts, medical implants.

● Why Choose It: For applications where maximum strength and fatigue resistance are critical. Note: Its strength makes it more challenging to machine than pure grades.

03 Titanium Grade 9 (Ti-3Al-2.5V) - The Specialty Performer

Grade 9 offers strength levels between Grade 4 and Grade 5, with superior corrosion resistance, especially in seawater environments. It has excellent fabricability, making it a preferred choice for tubing and complex parts.

● Typical Uses: Aircraft hydraulic systems, bicycle frames, marine components, sports equipment.

● Why Choose It: When you need higher strength than Grade 2 but better cold formability and corrosion performance than Grade 5.

04 Titanium Grade 23 (Ti-6Al-4V ELI) - The Medical & Aerospace Elite

Grade 23 is the “Extra Low Interstitial” (ELI) version of Grade 5. It features enhanced ductility and fracture toughness, making it the premier choice for critical medical and aerospace applications where reliability is paramount.

● Typical Uses: Orthopedic implants (hips, knees), dental components, spinal fixation devices, critical aerospace structures.

● Why Choose It: For medical applications requiring certified biocompatibility or for aerospace applications demanding superior toughness at low temperatures.

05 Other Available Grades

We also machine other titanium grades, including:

● Grade 1: The softest and most ductile, ideal for deep drawing and architectural applications.

● Grade 7 & 11 (Ti-0.15Pd): Offer enhanced corrosion resistance in reducing acids.

● Grade 12 (Ti-0.3Mo-0.8Ni): Excellent high-temperature strength and corrosion resistance.

Comparison of Common Titanium Alloys

Grade	Common Name	Key Properties	Tensile Strength (MPa)	Primary Applications	Machinability
Grade 2	Commercially Pure	Excellent formability, weldability, corrosion resistance	345 MPa	Aerospace, marine, chemical processing	Good
Grade 5	Ti-6Al-4V	High strength-to-weight ratio, good corrosion resistance	895 MPa	Aerospace frames, medical implants, high-stress parts	Fair (More challenging)
Grade 9	Ti-3Al-2.5V	High strength, excellent corrosion resistance, good fabricability	620 MPa	Aircraft hydraulic systems, bicycle frames, marine components	Very Good
Grade 23	Ti-6Al-4V ELI	High strength, superior fracture toughness, biocompatible	860 MPa	Medical implants, dental components, critical aerospace	Fair

Partner with Yokan for Your Titanium CNC Machining

With extensive experience machining all common titanium grades, Yokan Manufacturing has the expertise to guide you from material selection to finished part. We understand the nuances of working with each alloy and leverage our advanced CNC equipment to achieve precision results.

Still unsure which titanium grade is right for you?

[Contact Our Experts Today]

for a free consultation. Let us help you select the ideal material to ensure your project’s success.

Titanium Surface Finishing Services | Enhance Function & Aesthetics

At Yokan Machining, we provide a comprehensive range of surface finishes for your CNC-machined titanium parts. The right finish is critical for enhancing corrosion resistance, improving durability, achieving specific aesthetic goals, or ensuring biocompatibility. Our finishing services ensure your titanium components perform flawlessly and meet the highest quality standards.

Our Titanium Finishing Capabilities

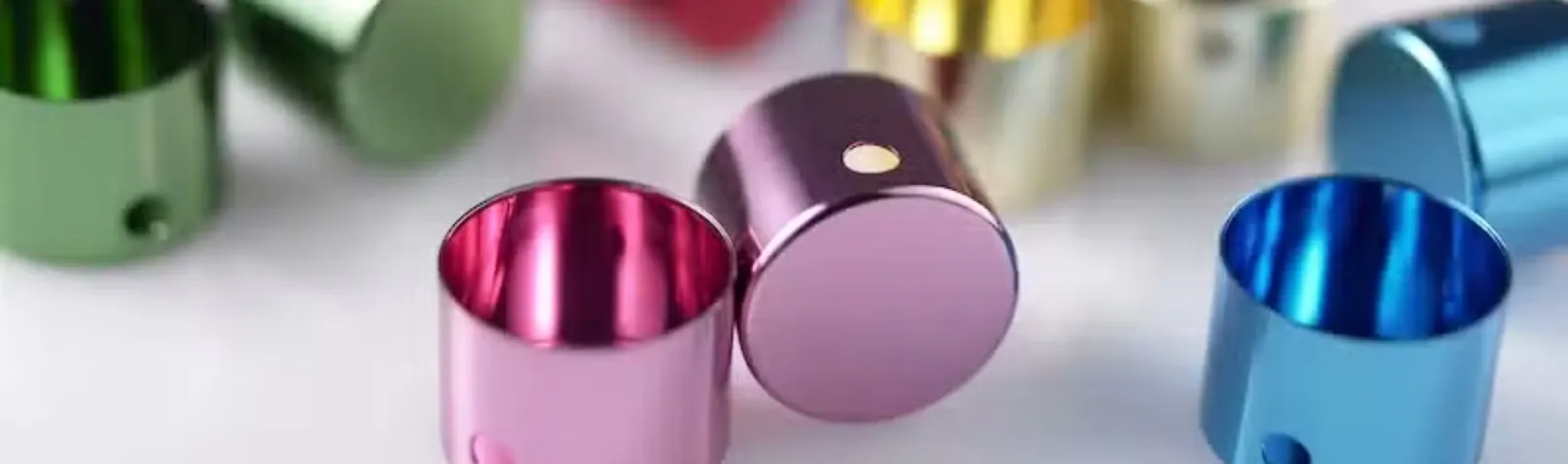

Anodizing

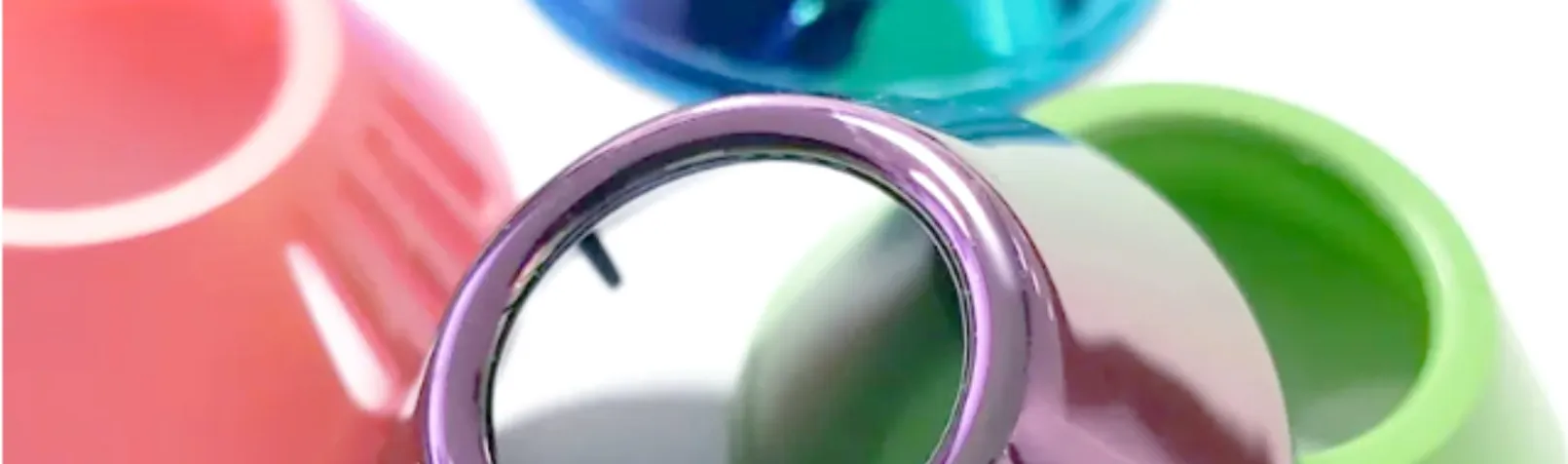

Titanium anodizing is an electrochemical process that thickens the part’s natural oxide layer. This treatment significantly enhances corrosion and wear resistance while allowing for the introduction of vibrant, permanent colors for part identification or aesthetic appeal.

Polishing

Through a meticulous abrasive process, we remove microscopic imperfections to create a smooth, reflective surface. Titanium polishing is ideal for applications requiring a high-end aesthetic, reduced friction, or easier cleaning, such as medical instruments or consumer-facing components.

Passivation

This chemical treatment strengthens titanium’s innate corrosion resistance by removing free iron contaminants and promoting the formation of a uniform, protective oxide layer. Passivation is essential for maximizing longevity in harsh environments and is a standard requirement for medical implants.

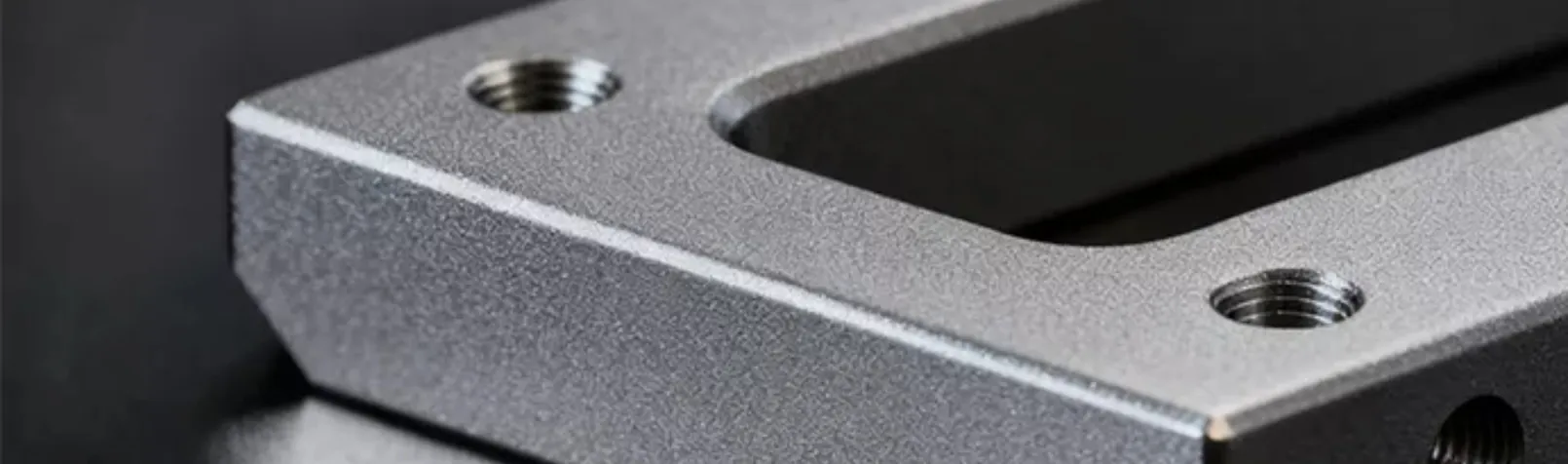

Bead Blasting

By propelling fine glass or ceramic beads at the surface, we produce a uniform, satin-matte finish. Bead blasting effectively conceals tool marks, provides an excellent pre-treatment for coatings like anodizing, and creates a consistent, non-reflective texture.

Powder Coating

This process involves applying a dry polymer powder electrostatically and then curing it with heat to form a thick, durable, and protective layer. Powder coating offers superior impact resistance and a wide range of color options for both functional protection and decorative purposes.

Plating

We apply a thin metallic layer (such as nickel or gold) to the titanium substrate. Plating can improve surface properties like electrical conductivity, solderability, or provide a specific decorative appearance not native to titanium.

Choosing the Right Finish for Your Application

Finish	Key Benefits	Ideal For
Anodizing	Corrosion/Wear Resistance, Aesthetic Color	Aerospace, Medical, Consumer Goods
Polishing	Smooth, Reflective Surface, Hygienic	Medical Devices, Food & Beverage, Jewelry
Passivation	Maximized Corrosion Resistance	Medical Implants, Marine, Chemical Processing
Bead Blasting	Uniform Matte Texture, Cosmetic Enhancement	All Industries (for a clean, non-glare surface)
Powder Coat	Extreme Durability, Decorative Colors	Architectural, Automotive, Industrial Hardware
Plating	Enhanced Conductivity, Specialized Decorative	Electronics, Aerospace, Luxury Items

Partner with Yokan for Superior Titanium Finishing

Selecting the optimal finish is the final step in ensuring your titanium parts meet their exact functional and cosmetic requirements. Our finishing experts are ready to guide you to the best solution for your project.

Ready to Specify Your Finish?

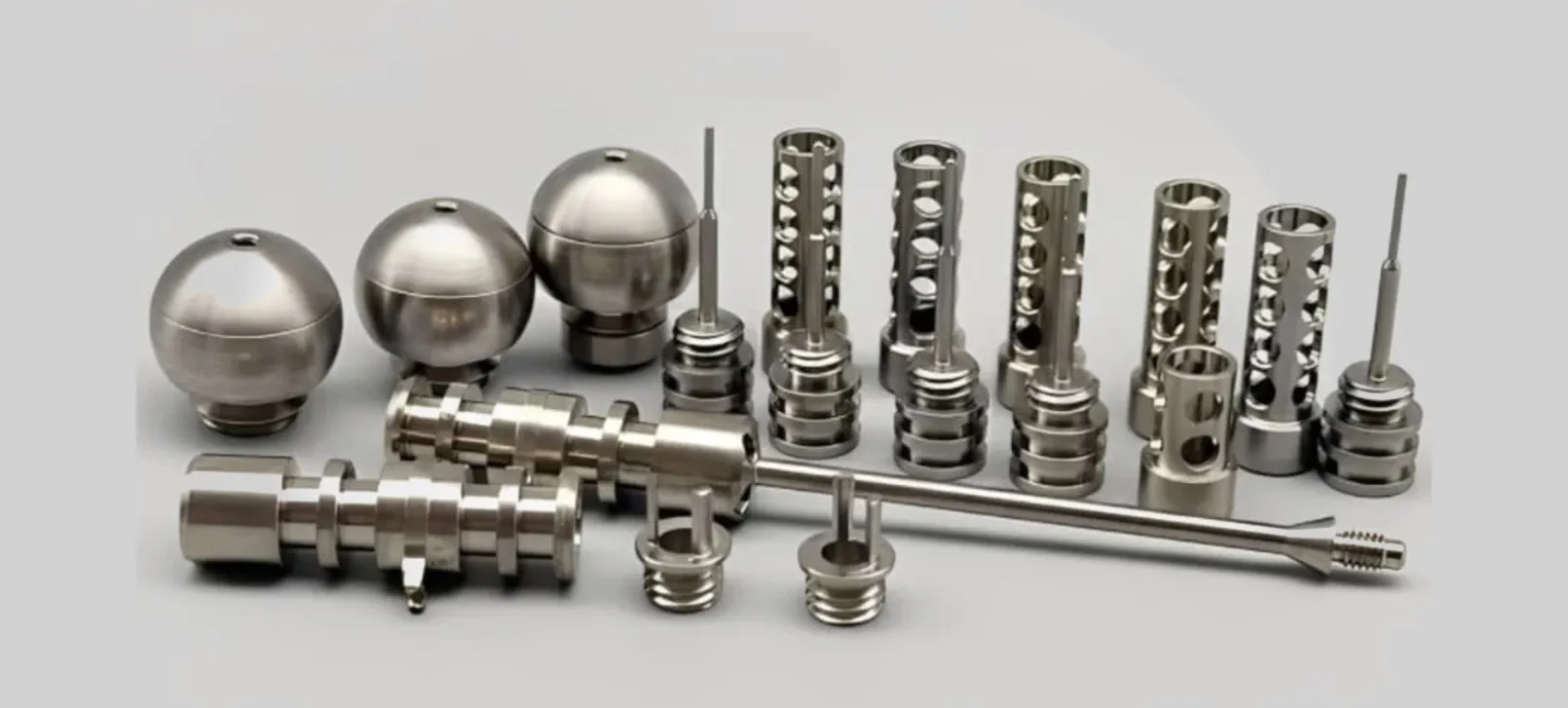

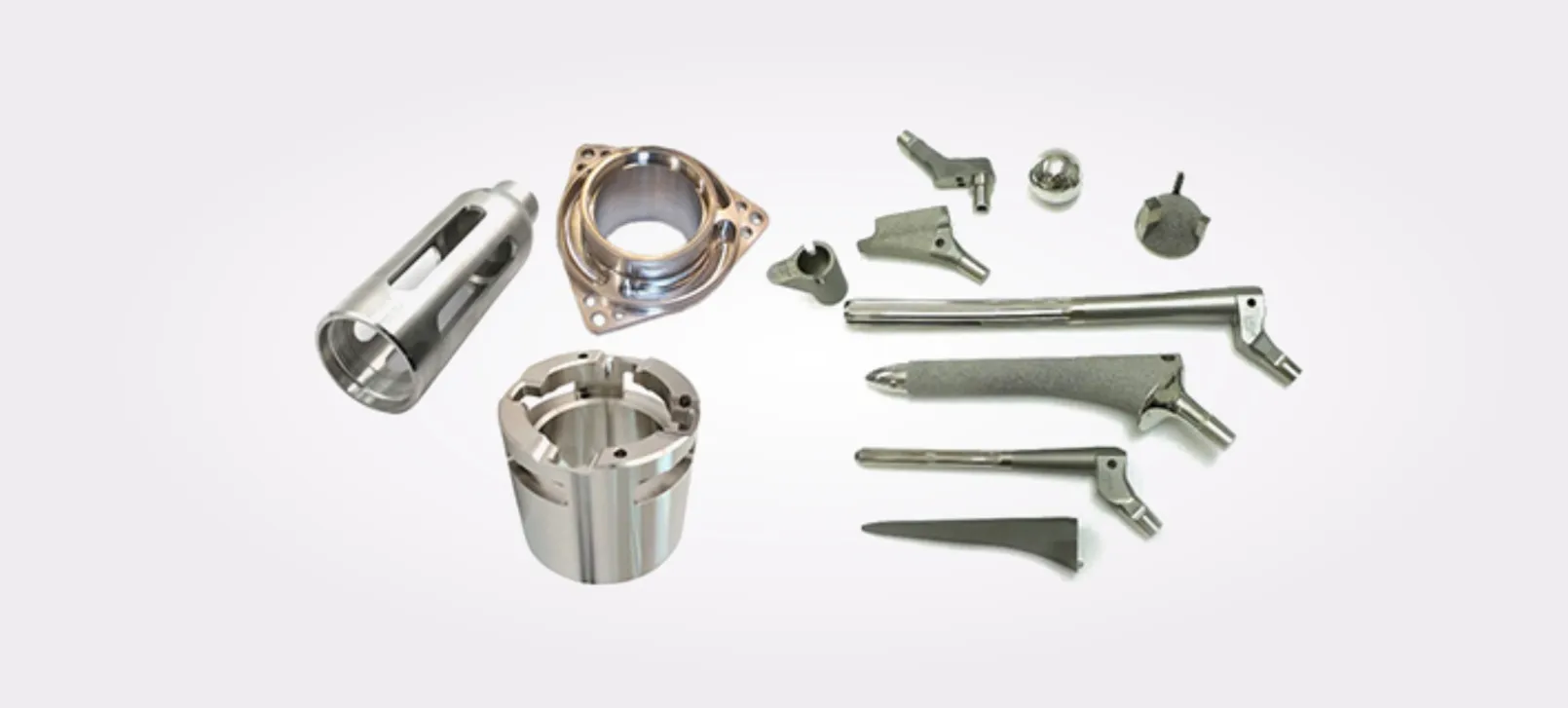

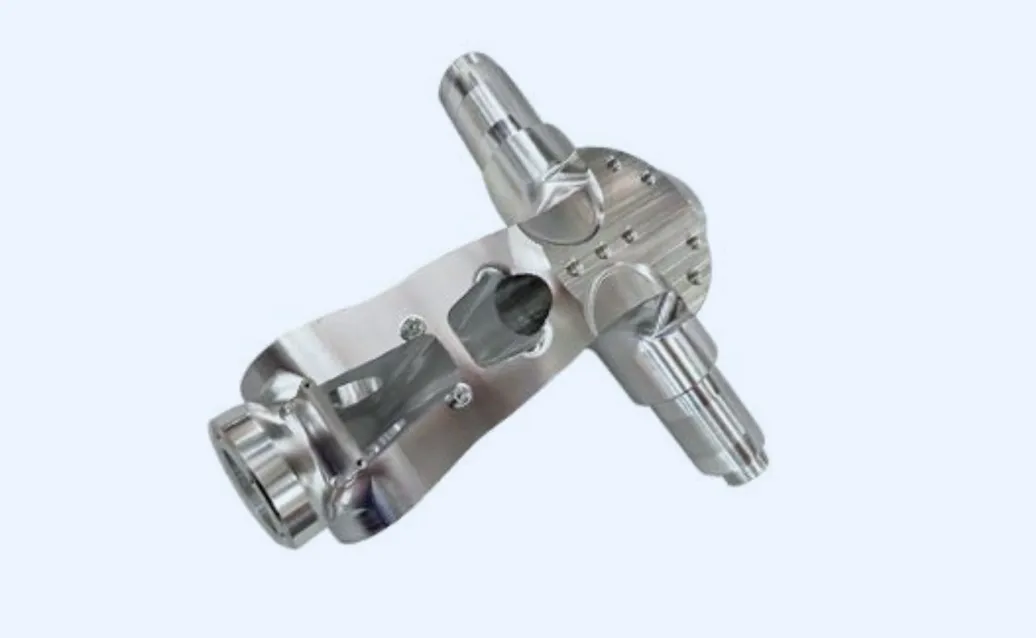

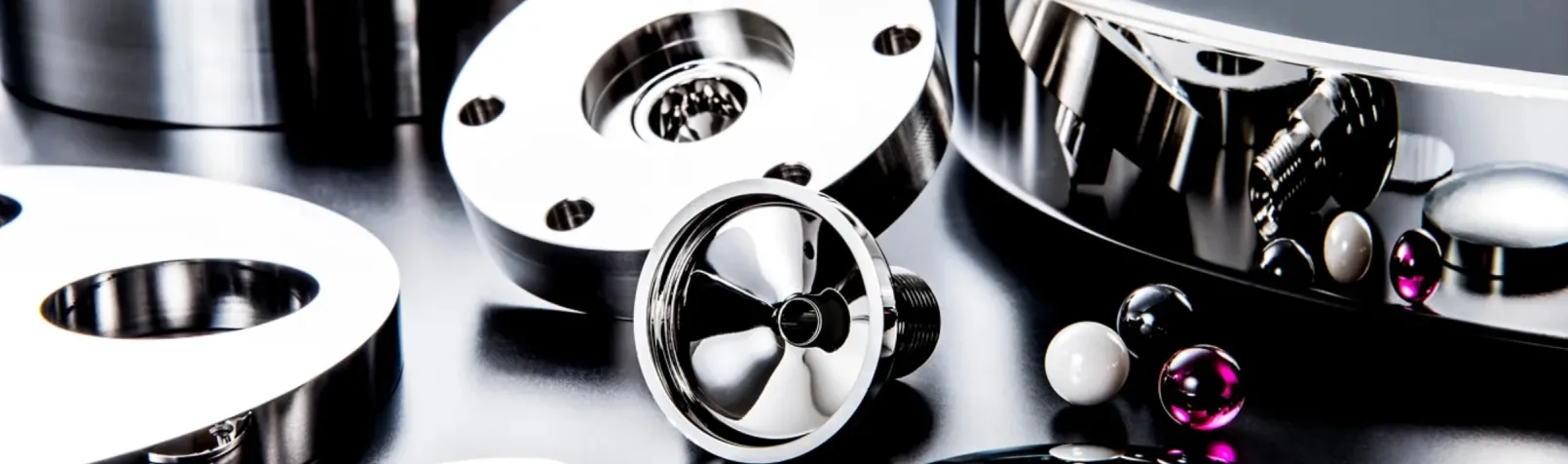

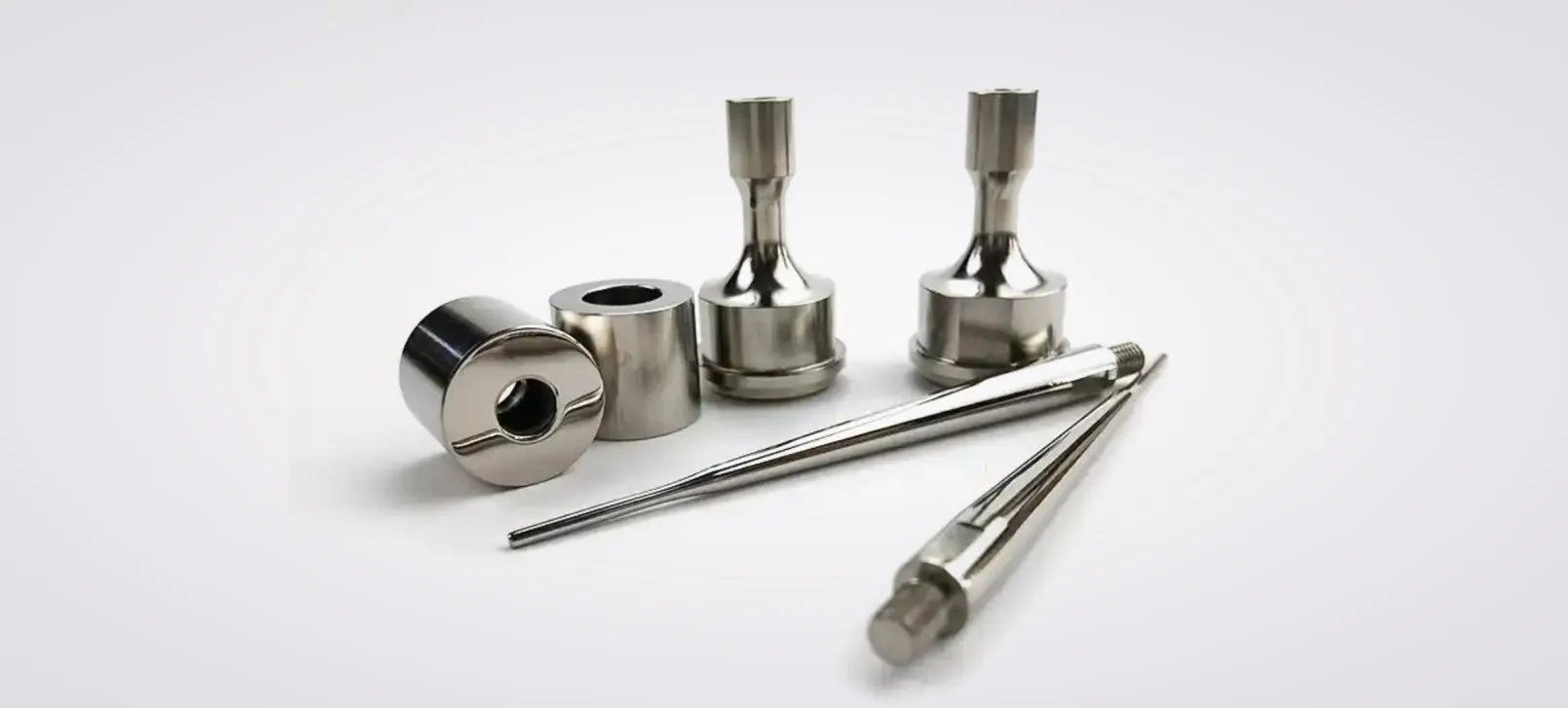

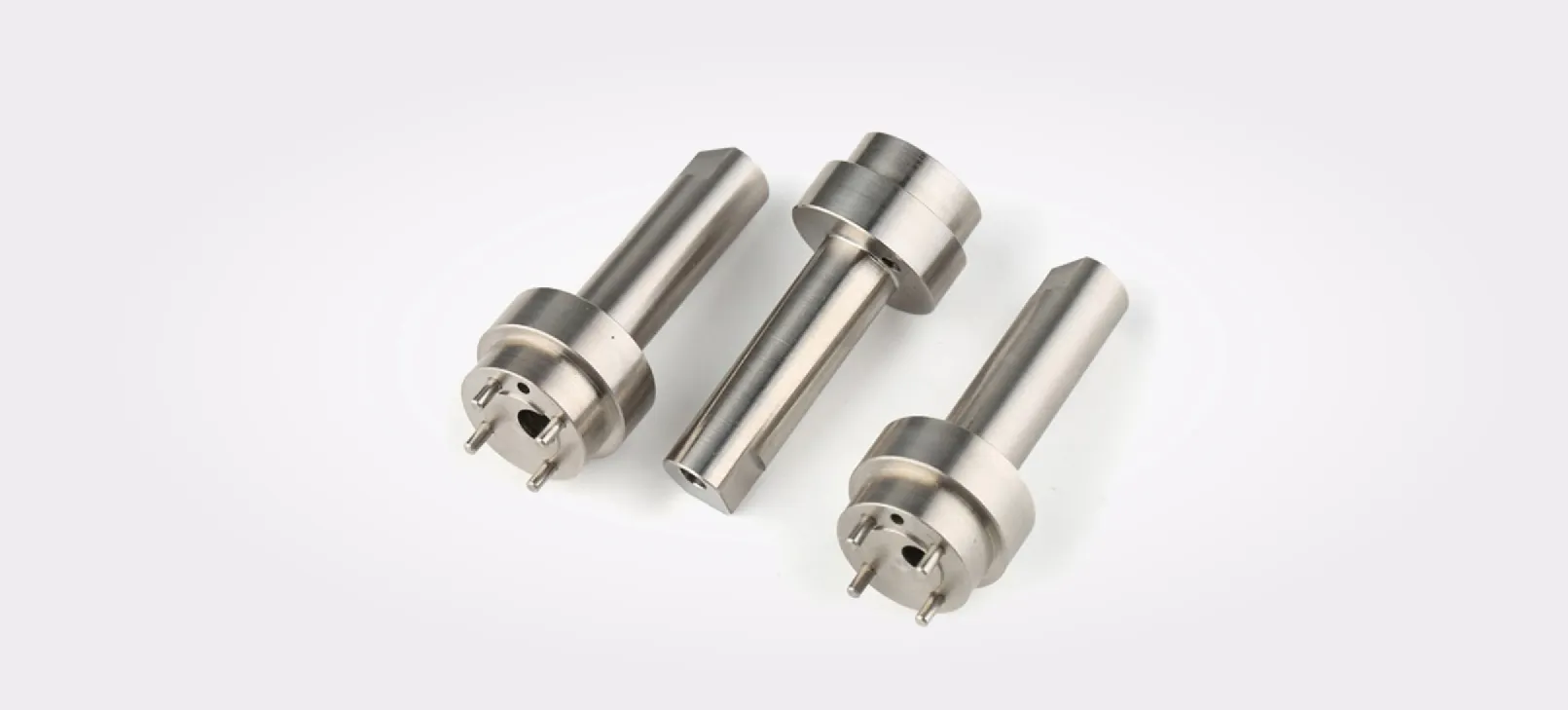

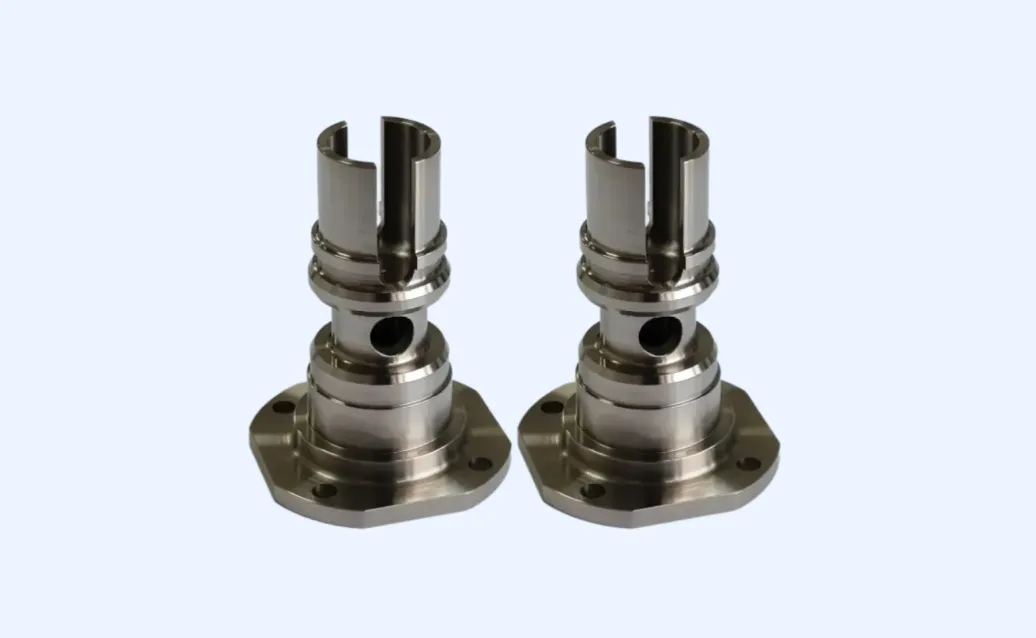

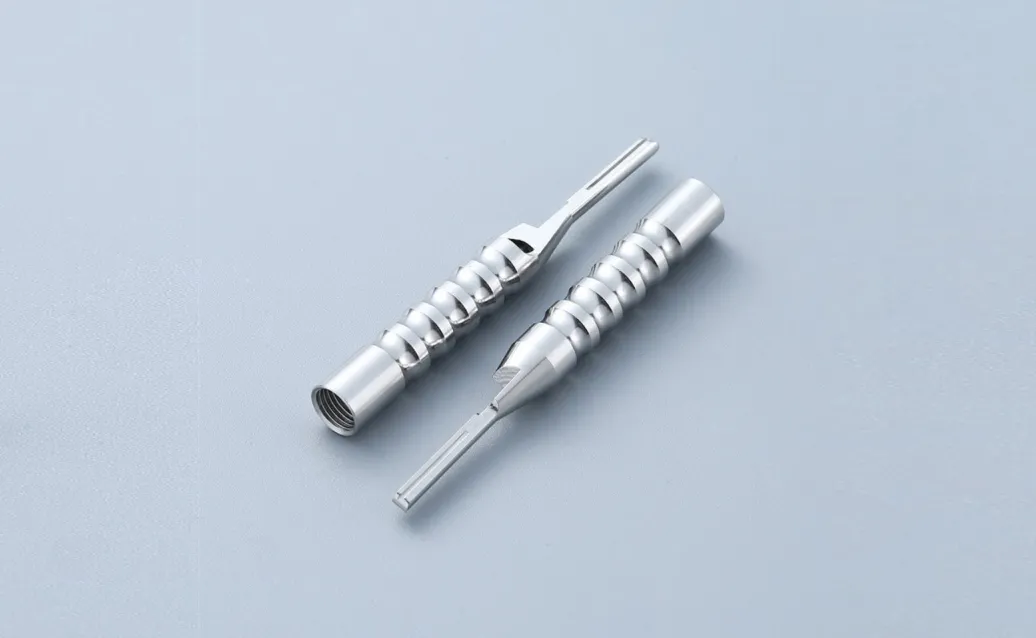

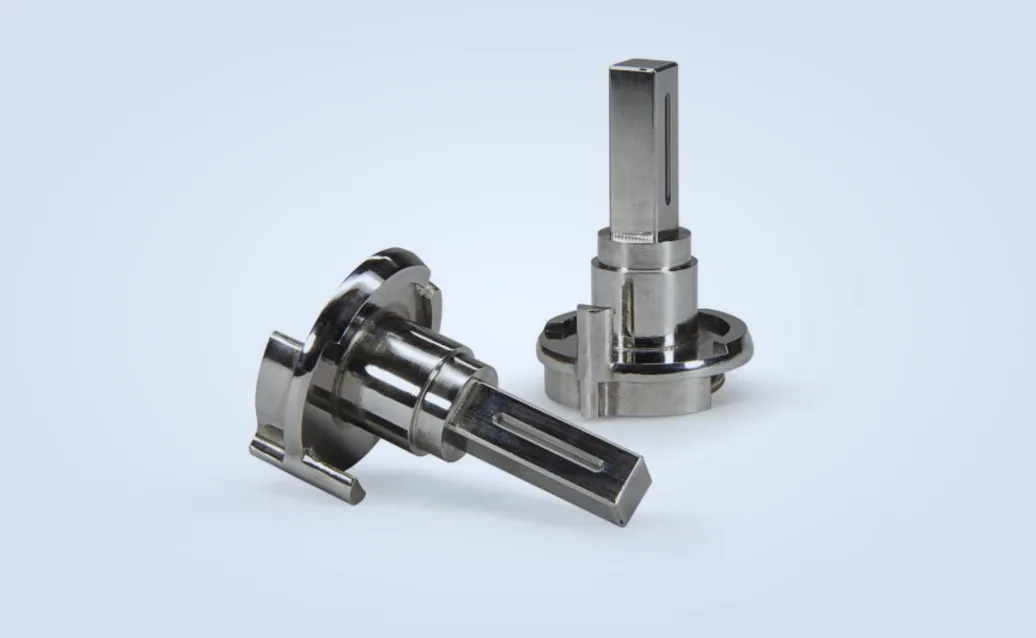

CNC Machined Titanium Parts Gallery | Precision Components by Yokan

Explore our gallery of precision CNC machined titanium parts, showcasing our expertise across critical industries. Each component highlights our ability to produce complex geometries with tight tolerances, meeting the stringent demands of aerospace, medical, automotive, and defense applications. From prototypes to production runs, see how we deliver uncompromising quality in titanium.

Industries We Serve

● Aerospace & Defense: Lightweight, high-strength components for aircraft, satellites, and defense systems.

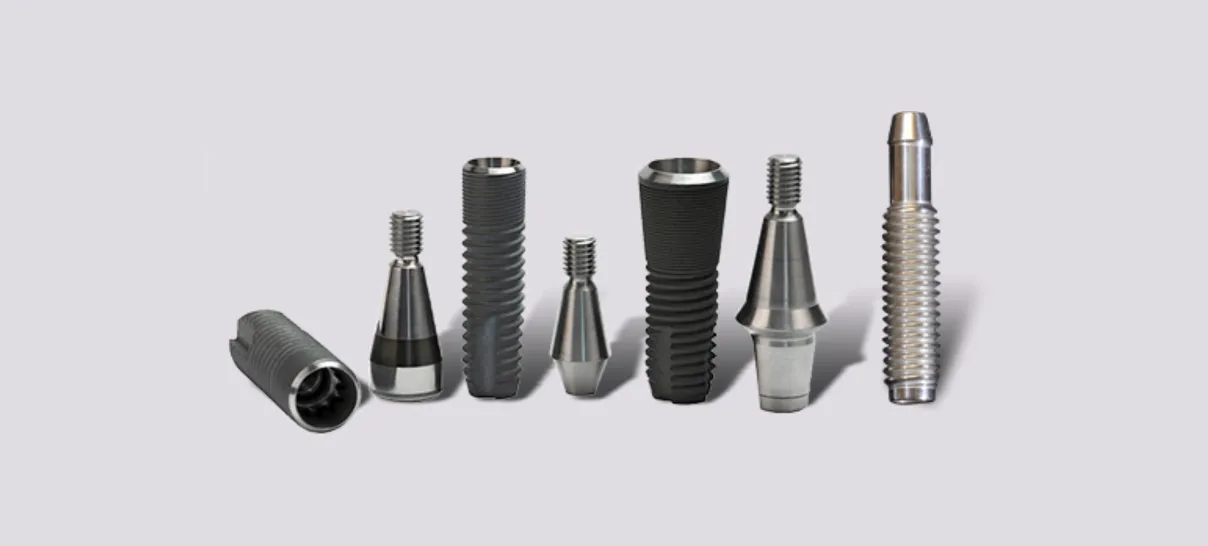

● Medical & Dental:Biocompatible, sterilizable implants, surgical instruments, and dental devices.

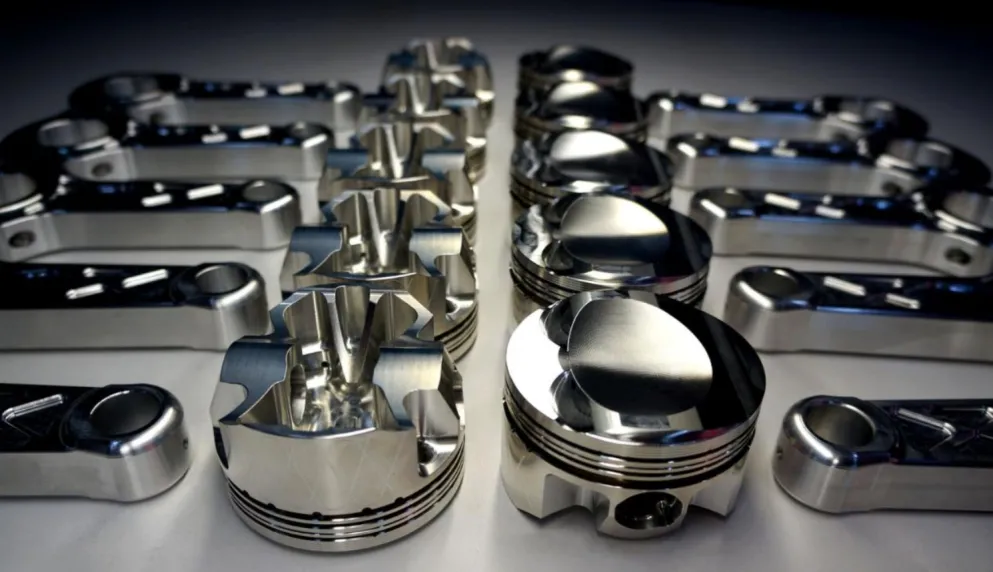

● Automotive & Racing: High-performance parts that withstand extreme stress and heat.

Industrial & Marine: Durable, corrosion-resistant components for harsh environments.

● Advanced Technology: Complex parts for robotics, semiconductors, and R&D.

Our Titanium Machining Capabilities in Action

This gallery demonstrates our proficiency with:

● Complex Geometries: Intricate designs with challenging features.

● Tight Tolerances: Consistent precision for critical-fit applications.

● Various Titanium Grades: Expertise in Grade 2, Grade 5 (Ti-6Al-4V), Grade 23, and more.

● Multiple Finishes: Including anodizing, bead blasting, polishing, and passivation.

Your Project, Our Precision

No project is too complex or too small. Whether you’re developing a groundbreaking medical device, an aerospace innovation, or a specialized piece of hardware, our team has the expertise to manufacture your titanium parts to the highest standards.

Inspired by Our Work?

[Submit Your Design for a Free Quote] or [Contact Us Today] to discuss your specific titanium machining needs.

CNC Machining Titanium: Frequently Asked Questions

Titanium is a high-performance material with unique machining requirements. Below, we answer the most common questions about the CNC machining process for titanium, from challenges and costs to material selection. Can’t find your answer? Contact our experts for personalized advice.

Q1: What are the biggest challenges of CNC machining titanium?

Machining titanium requires specialized expertise due to three primary challenges:

● High Cutting Forces & Tool Wear: Titanium’s strength demands powerful machines and rigid setups to avoid tool deflection and premature wear.

● Heat Generation: Titanium’s low thermal conductivity causes heat to concentrate on the cutting tool edge, not the chip. This requires advanced cooling strategies to protect the tool and the part.

● Galling and Work-Hardening: Titanium can adhere to cutting tools (galling) and harden during machining. This necessitates sharp tools, specific geometries, and optimal speeds and feeds to ensure a quality surface finish.

Q2: How much does CNC machining titanium cost?

Titanium is generally more expensive than aluminum or steel, which impacts the raw material cost. The final part cost is influenced by:

● Part Complexity: Intricate designs with deep pockets or thin walls require more machining time.

● Tolerances: Tighter tolerances demand slower machining speeds and specialized inspection.

● Quantity: Volume affects the cost per part.

● Post-Processing: Finishes like anodizing or polishing add cost.

While titanium machining has a higher starting cost, its performance benefits often provide the best value for critical applications.

Q3: What is the most common titanium grade for CNC machining?

Titanium Grade 5 (Ti-6Al-4V) is the most widely used alloy. It offers an exceptional strength-to-weight ratio and good corrosion resistance, making it ideal for aerospace, medical, and automotive parts.

Other common grades include:

● Grade 2: Excellent for applications prioritizing formability and corrosion resistance over ultimate strength.

● Grade 9 (Ti-3Al-2.5V): A good balance of strength and manufacturability, often used for tubing.

● Grade 23 (Ti-6Al-4V ELI): Used for medical implants due to its enhanced biocompatibility and fracture toughness.

Q4: Which cutting tools are best for machining titanium?

Carbide tools are the industry standard for most titanium machining due to their excellent wear resistance and toughness. For specific applications:

● Ceramic Inserts: Suitable for high-speed roughing operations.

● Polycrystalline Diamond (PCD) Tools: Used for high-volume finishing where exceptional tool life and surface finish are critical.

Our machine shop selects the optimal tooling based on the specific titanium grade and part geometry to ensure efficiency and quality.

Ready to Start Your Titanium Project?

Leverage our expertise in machining challenging materials. We provide practical solutions to overcome titanium’s hurdles and deliver high-quality, precision parts.

Get your parts into production with a trusted manufacturing partner.
